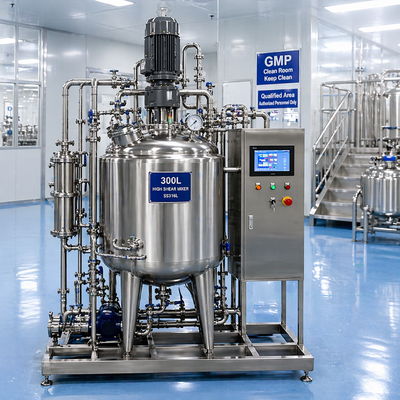

Pharma Liquid Mixing System 300L with SS316L Tank (High Shear Mixer, GMP Compliance)

1. Product Name

Pharma Liquid Mixing System 300L with SS316L Tank (High Shear Mixer, GMP Compliance)

2. Product Overview

The 300L Liquid Mixing System is engineered for hygienic liquid blending and dispersion under high-standard production conditions. Equipped with a high shear mixer and SS316L contact surfaces, the system ensures rapid homogenization, stable particle distribution, and excellent product consistency.

Its compact skid-mounted design, combined with automated control and sanitary construction, makes it suitable for applications requiring precision, cleanliness, and repeatability.

3. Applications

• Biotech liquid preparation
• Cosmetic emulsification and mixing
• Food & beverage blending
• Chemical liquid dispersion
• Laboratory and pilot-scale processing

4. Process Flow Diagram

Purified Water Source → Raw Material Feeding → 300L Mixing Tank (High Shear Mixer)
→ Circulation Loop → Heating/Cooling Jacket → Filtration Unit → Storage/Transfer

Process Description:
Raw materials are introduced into the tank and rapidly dispersed by the high shear mixer. The circulation loop enhances mixing efficiency. Optional temperature control ensures stable process conditions. The final solution is filtered and transferred for further use.

5. Key Features

• SS316L contact parts for corrosion resistance
• High shear mixer for fast and uniform dispersion
• Smooth internal surface (Ra ≤ 0.4 μm optional)
• Optional heating & cooling jacket
• PLC automatic control with touch screen
• CIP-ready for efficient cleaning
• Compact skid-mounted structure

6. Technical Parameters

7. Configuration List

8. Project Cases

Case 1 – Southeast Asia Cosmetic Plant
A 300L high shear mixing system improved emulsification efficiency, reducing processing time by 30%.

Case 2 – Europe Food Processing Facility
System enabled stable mixing of viscous liquids, ensuring consistent product texture and quality.

9. Certifications & Standards

• GMP-oriented design principles
• ISO 9001 Quality Management
• Hygienic design with sanitary fittings
• Optional compliance with FDA/WHO guidelines

10. FAQ

Q1: What is the advantage of a high shear mixer?
It ensures rapid dispersion and uniform particle distribution.

Q2: Can the system handle viscous liquids?
Yes, it is suitable for low to high viscosity applications.

Q3: Is temperature control available?
Yes, optional heating and cooling jacket can be integrated.

Q4: Is automatic operation supported?
Yes, PLC control with touch screen is available.

Q5: Can the system be customized?
Yes, design, capacity, and configuration can be tailored.

11. CTA (Call To Action)

Need a reliable 300L high shear mixing system?
Contact us for a customized solution and quotation.
